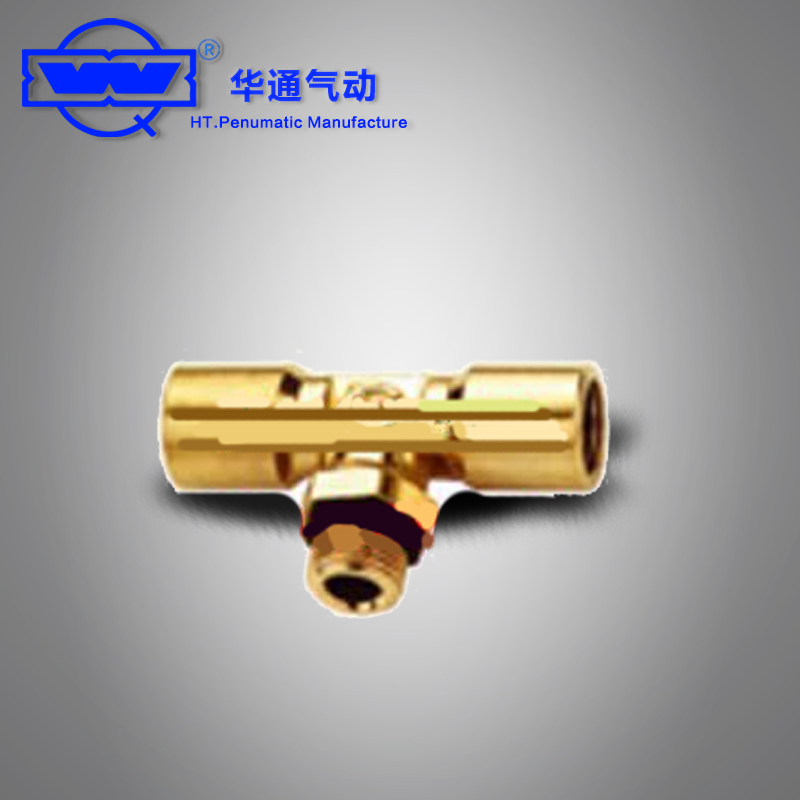

Installation and application JZH series pneumatic pipe joint is a new type of combined pneumatic pipe joint with a maximum working pressure of 1.0MPa. This pipe joint is composed of various joints, joint bodies and a terminal socket. . Through the combination of these three parts, the same pipe joint can be combined into a combined type with various connection methods and different nominal diameters
安装及应用
JZH系列气动管接头，是一种新型的组合式气动管接头，*大工作压力为1.0MPa.这种管接头是由各种不同的接头、接头体和一个终端管座组合而成的。通过这三部分的组合，可以把同个管接头组合成具有各种不同连接方式和不同公称通径的组合式管接头。
组合式管接头能同时适用几种不同公称通径和不同材质的气管，具有通用性强、多功能、拆装方便等特点。
• 标记示例： ①：组合式三通终端管接头 公称通径 Ø6MM JZH-3T-Z6 M10×1
②：组合式三通终端变径管接头 公称通径 Ø6MM B=Ø8MM C=Ø4MM JZH-3T-Z6-8-4 M10×1/M12×1.25/M8×1

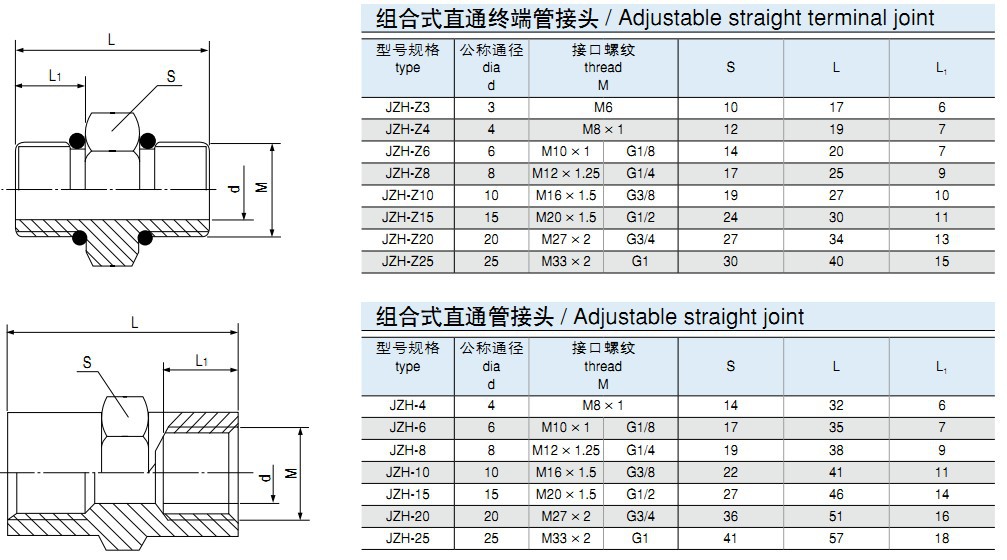

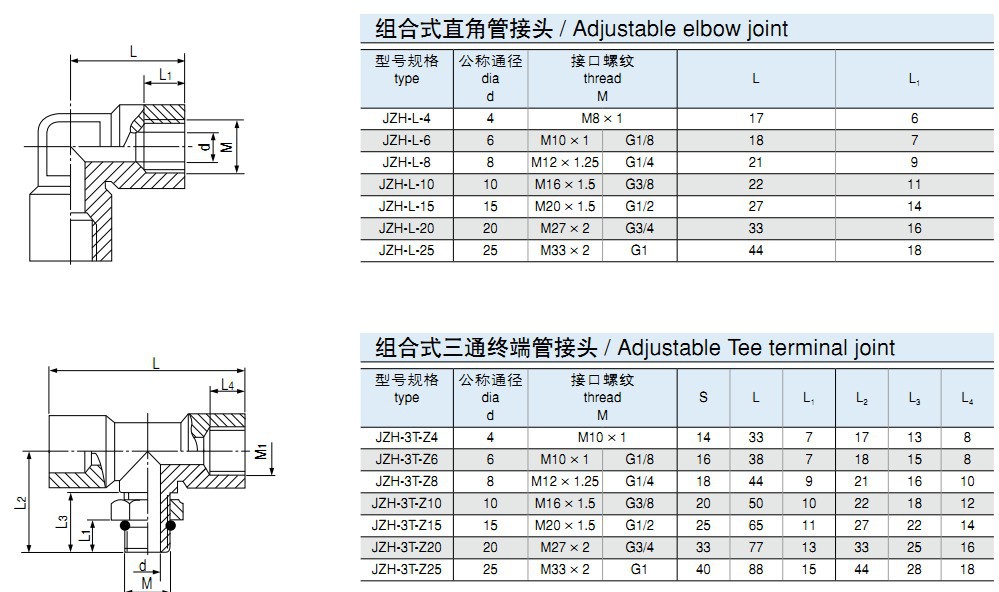

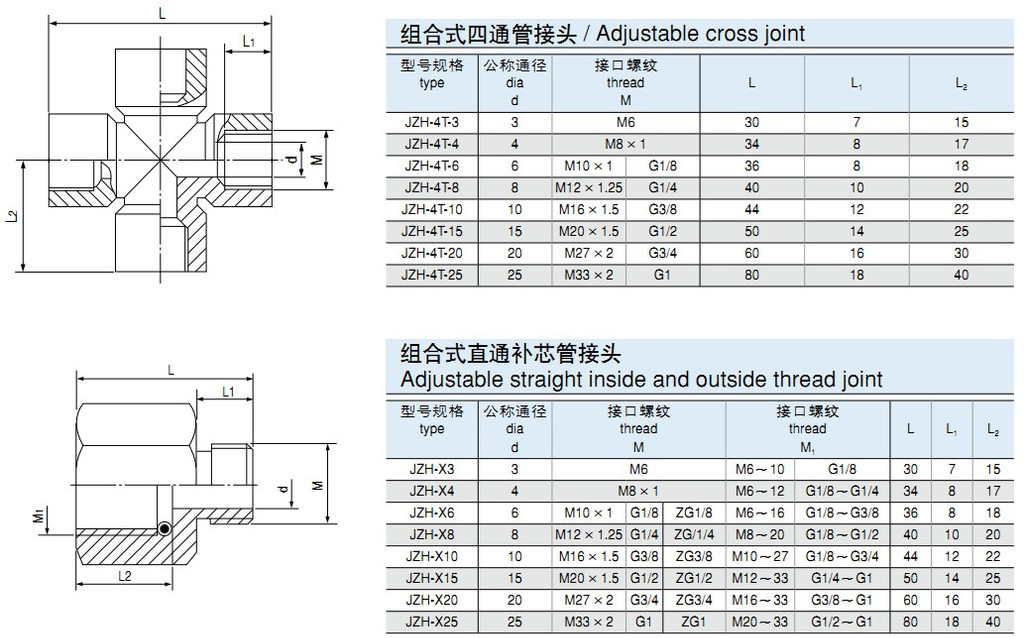

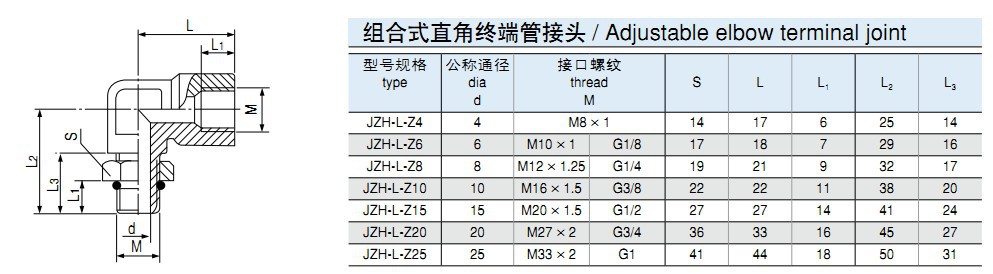

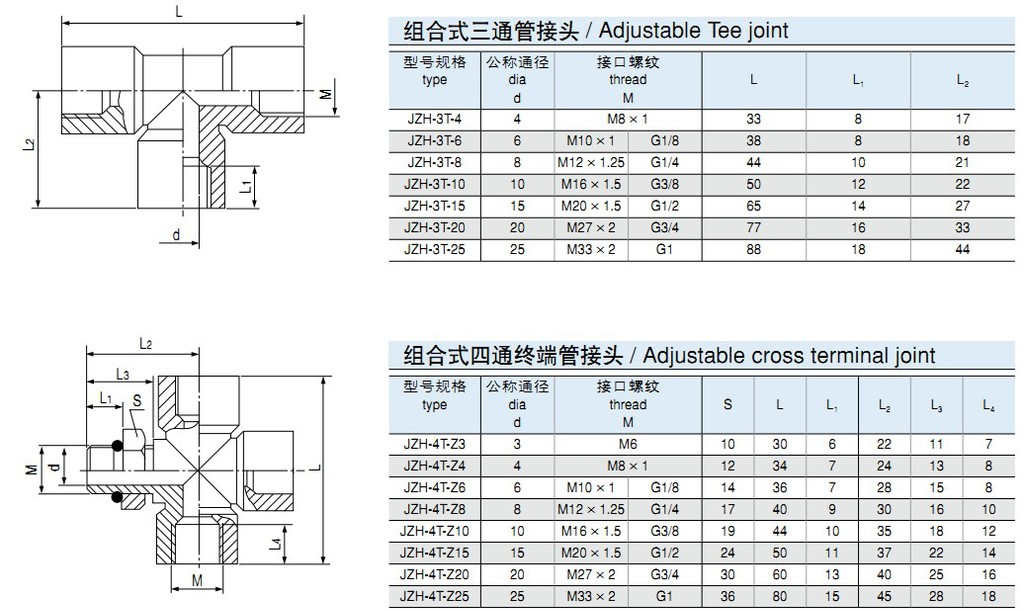

外形尺寸
