Current Location:Home > Pneumatic Products > Accessoires Fittings

Lock Female Straight Through Terminal Fittings

Installation and application 1. JSM series lock nut type pipe joint, suitable for connecting nylon pipe and plastic pipe, the maximum working pressure is 1.0MPa. This series of pipe joints has the advantages of convenient use and firm installation. 2. First remove the lock nut and put it on the connecting pipe, insert the connecting pipe into the joint, and then tighten the joint with the lock nut. • Examples of tags: ①:

Product Description

安装及应用

一、JSM系列锁母式管接头,适用于连接尼龙管、塑料管,*大工作压力为1.0MPa。该系列管接头具有使用方便,安装牢固等优点。
二、先将锁母卸下套入连接管上,把连接管插入接头上,再将锁母旋紧接头即可。
• 标记示例: ①:锁母式三通终端管接头 公称通径 Ø6MM JSM-3T-Z6 M10×1
②:锁母式三通终端变径管接头 公称通径 Ø6MM B=ØMM C=Ø4MM JSH-3T-Z6-8-4 M10×1

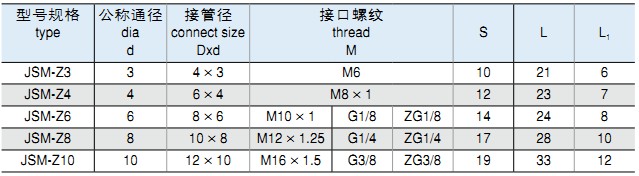

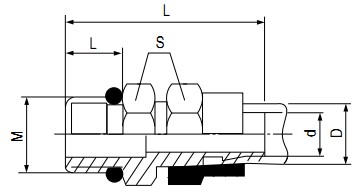

外形尺寸
