Wuxi Huatong Pneumatic Manufacture
Pneumatics/Solenoid Valve/Cylinder

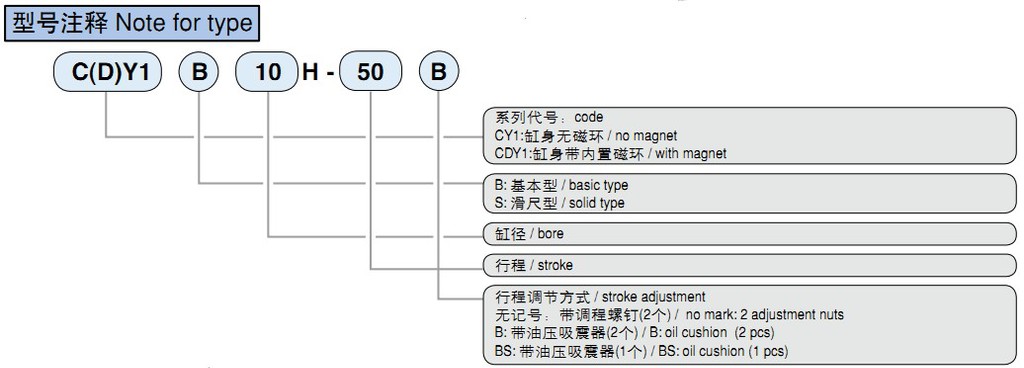

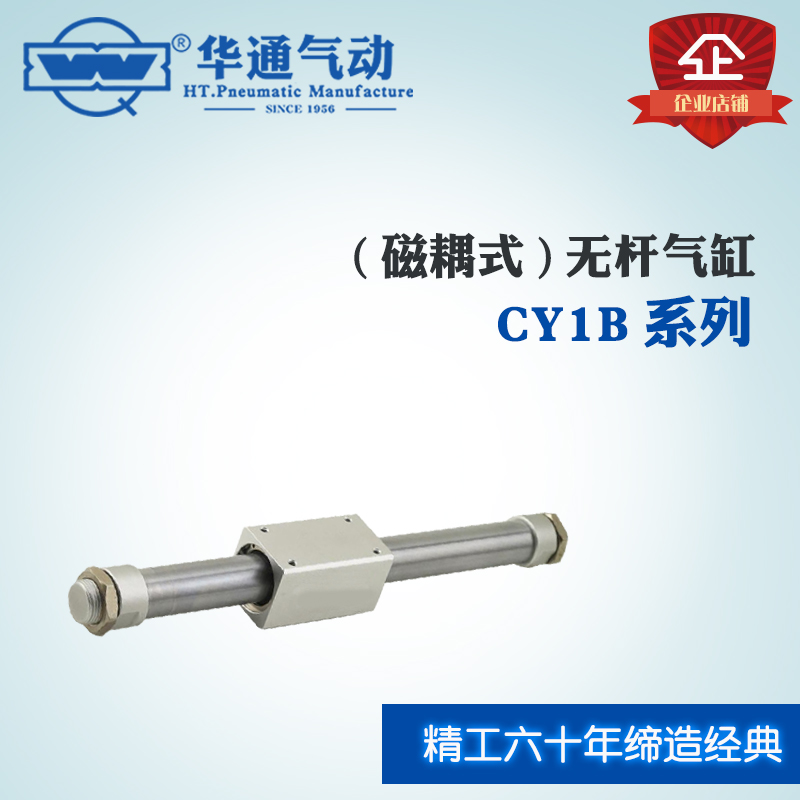

Huatong Pneumatic Rodless Cylinder CY1 series, non-standard custom cylinders can be customized according to drawings and samples

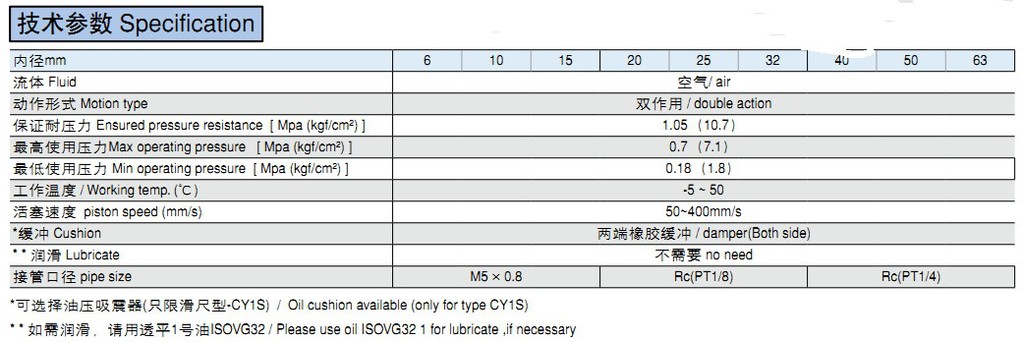

内径mm 6 10 15 20 25 32 40 50 63
流体 Fluid 空气/ air
动作形式 Motion type 双作用 / double action
保证耐压力 Ensured pressure resistance [ Mpa (kgf/cm2) ] 1.05（10.7）
*高使用压力Max operating pressure [ Mpa (kgf/cm2) ] 0.7（7.1）
*低使用压力 Min operating pressure [ Mpa (kgf/cm2) ] 0.18（1.8）
工作温度 / Working temp. (℃) -5 ~ 50
活塞速度 piston speed (mm/s) 50~400mm/s
*缓冲 Cushion 两端橡胶缓冲 / damper(Both side)
* * 润滑 Lubricate 不需要 no need
接管口径 pipe size M5×0.8 Rc(PT1/8) Rc(PT1/4)
*可选择油压吸震器(只限滑尺型-CY1S) / Oil cushion available (only for type CY1S)
* * 如需润滑，请用透平1号油ISOVG32 / Please use oil ISOVG32 1 for lubricate ,if necessary
详情可登陆公司网站http://www.wxpneum.com.cn
或拨打电话0510-83591123
Instudry Application
Company Profile
Established in 1956, Wuxi Huatong Pneumatic Manufacture Co., Ltd. is a strong and reliable partner for various industries. With our innovative R&D team, professional technical support team, and motivated sales team, we have been producing and delivering a large number of different valves, cylinders, air-filter components, and accessories to Germany, USA, Iran, Singapore, Russia Federation over 60 years. Huge investments in advanced technology of production and testing equipment, software and organization structure support us to offer top quality and good service. We are committed to be a leading provider and supporter to all our customers.
Huatong Pneumatic produces high-quality pneumatic and hydraulic cylinders as well as pneumatic valves, complete pneumatic systems, pneumatic / electrical stainless steel cabinets in all sizes and various custom-made accessories and spare parts according to our customer needs. We have satisfied customers for our custom-made pneumatics in China, USA, Germany, Italy, Holland, Australia and various other countries.
Certifications
FAQ
Q1: Are you a manufacturer or trading company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q2: How do you ensure your product and service quality?
A: Our processes strictly adhere to ISO 9001 procedures. Every product will be strictly tested before packing and shipping.
Q3: How can you customize cylinders?
A: Our engineer will design with your drawing or requirements, and send our drawing for you to check. Then, we will arrange production.
Q4: How can I make payment?
A: We accept T/T, L/C, Western Union.
Q5: What's your minimum order quantity?
A: All MOQS vary, depending on the products. Please feel free to check with us for specific items.
Q6: What about your delivery time?
A: It depends, but usually takes about 1-6 weeks.
Q7. What about shipping?
A: We suggest small batch by air/express and bulk by sea.
Q8. Do you have OEM/ODM service?
A:Yes. We OEM and ODM for some famous brand.
Q9. What's your policy if we want to distribute your products in local market?
A: Thanks for your interest and support. We would like to offer some Preferential policies, like discount in price, prepare stock and so on. Welcome to our factory and have a face-to-face talk.
Q10: What about your after-sales service?
A: We have a professional after-sales service team. Your feedback will be quickly responded and solved.
