Small guide rod cylinder MGC series, non-standard custom cylinders can be customized according to drawings and samples

Built-in hydraulic shock absorber, with stroke adjustment device, strong resistance to side load, high accuracy of non-swinging, the bearing of the guide rod can choose sliding or ball guide bearing

Product Catalog:
Product Description

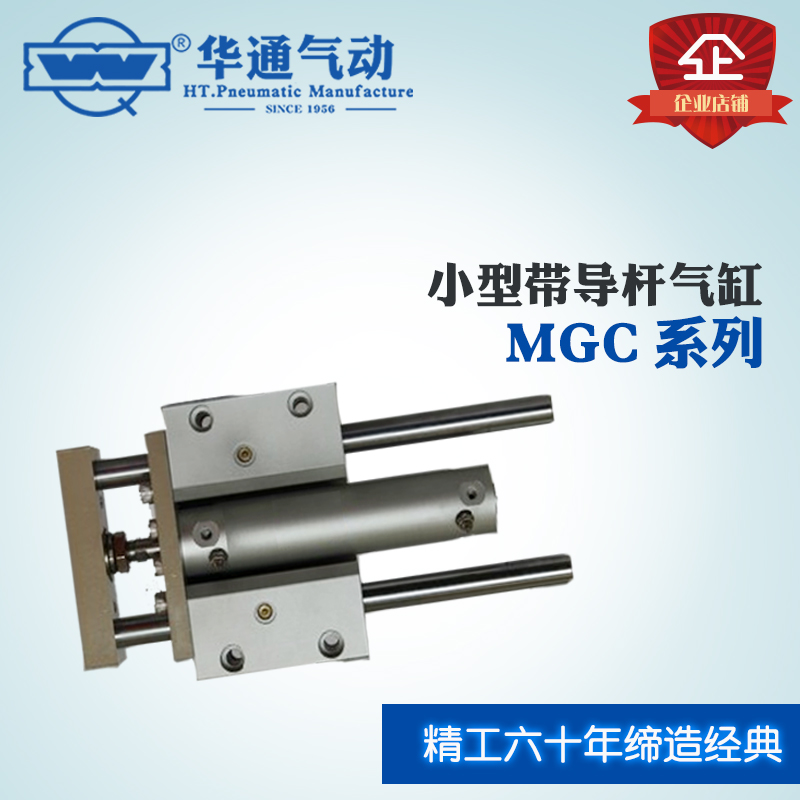

小型带导杆气缸 MGC 系列

产品特点:

内置油压吸震器 / with oil cushion

附有调行程装置 / stroke adjustable

侧面负载抵抗力强 / high bending strength

不摇转精度高 / no rational

导向杆的轴承可选择滑动或滚珠导向轴承/two bearing: slide/ball bushing bear ing.


技术参数 Specification
内径 bore(mm) 20 25 32 40 50
流体 fluid 空气 / air
动作形式motion type 双动 / double action
保证耐压力 Ensured pressure resistance [ Mpa(kgf/cm2) ] 1.5(15.3)
*高使用压力Max operating pressure [ Mpa(kgf/cm2) ] 1.0(10.2)
*低使用压力 Min operating pressure [ Mpa(kgf/cm2) ] 0.15(1.5)
工作温度 / Working temp. (℃) -5~ 50
活塞速度 / piston speed (mm/s) 50~750
缓冲 / cushion 气缓冲(气缸本身) / air cushion
行程 公差 / stroke tolerance (mm)
+1.9
+0.2
* 润滑 / lubricate 不需要 / no need
轴承 / bearing 滑动轴承/ 滚珠导向轴承 // slide / ball bushing
活塞杆不转动精度
Accuracy of the piston rod
does not rotate
滑动轴承 / slide ±0.1° ±0.09° ±0.08° ±0.08° ±0.06°
滚珠导向轴承 / ball bush bearing ±0.06° ±0.05° ±0.04° ±0.04° ±0.04°
接管口径 / pipe size M5 1/8 1/4
* 如需润滑,请用透平1号油ISOVG32 &
