Current Location:Home > Pneumatic Products > Accessoires Fittings

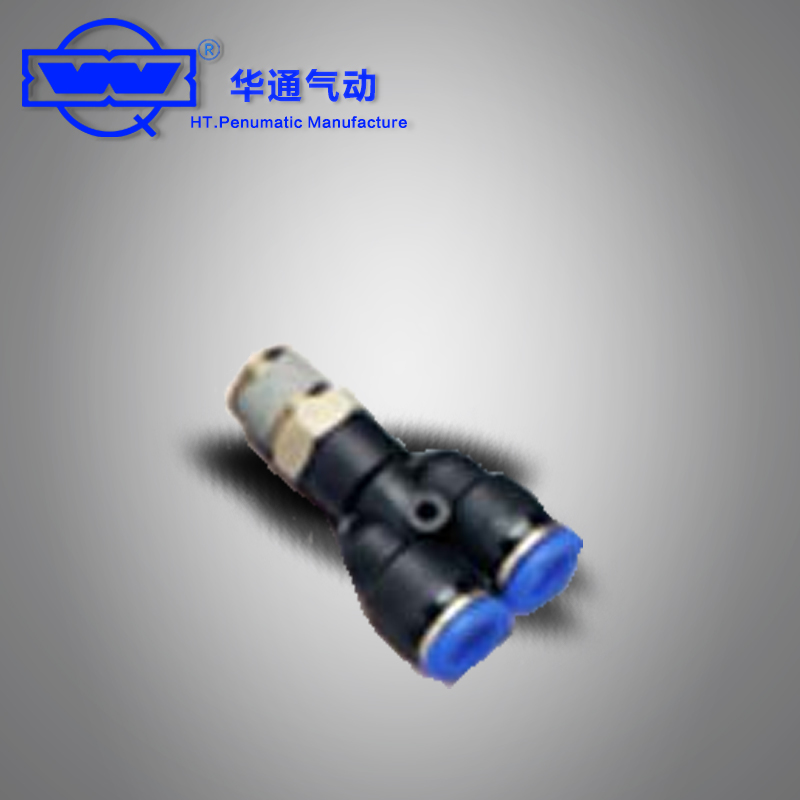

Plug-in U-shaped end pipe joint PX joint

Installation and application 1. JC series plug-in pipe joints are suitable for connecting rigid and semi-rigid nylon pipes and plastic pipes. The maximum working pressure is 1.0MPa. This series of pipe joints is easy to install, reliable in sealing, firm and beautiful in connection. 2. 1. Remove the burrs after the trachea is cut off, and insert one end of the trachea into the connector socket (must be inserted to the end) to achieve a secure

China's Taobao Store:
Product Description

安装及应用

一、JC系列插入式管接头,适用于连接硬质、半硬质尼龙管、塑料管,*大工作压力为1.0MPa。该系列管接头安装方便,密封可
靠,接管牢固、美观。
二、1、气管切断后去除毛刺, 将气管一端插入接头插口内(一定要插到底)即可达到牢固的连接和密封。
2
、拆卸气管时,用姆指将接头卡套压进,轻轻用力即可将气管拔出。
3
、气管反复多次拔出后,应剪去端部磨损部份,修平后继续使用。
4
、直角、三通、四通等终端管接头,安装后,仅需旋转接头体,即可调整接头的接管方向。
• 标记示例:
①:插入式三通终端管接头公称通径 Ø6MM JC-3T-Z6 M10×1
②:插入式三通终端变径管接头公称通径 Ø6MM B=8MM C=Ø4MM JC-3T-Z6-8-4 M10×1

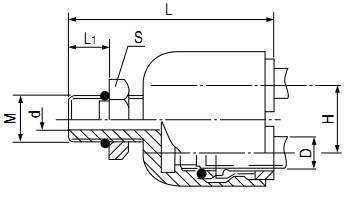

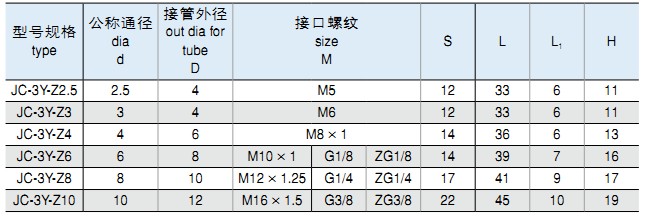

外形尺寸
