ferrule straight-through end fittings

Installation and application 1. JT series ferrule type pipe joints are suitable for the connection of non-ferrous metal pipes and braided nylon pipes. The maximum working pressure is 1.0MPa. 2. After the trachea is cut off, the nozzle is trimmed and deburred. Insert the trachea into the connector (be sure to insert it all the way) and then tighten the cap. When the tube can no longer be rotated, continue to tighten 1/3 turn to connect and seal firmly. Third, the

Product Description

安装及应用

一、JT系列卡套式管接头适用于有色金属管,编织尼龙管的连接。*大工作压力为1.0MPa。
二、气管切断后,管口修平去毛刺。将气管插入接头内(一定要插到底)然后旋紧管帽。当管子已不能转动时,再继续旋紧1/3圈,即可牢固连接和密封。
三、该系列产品适用于两种连接管,如果用硬质尼龙管的购货时指明。
*标记示例:①:卡套式三通终端管接头 公称通径Ø6MM JT-3T-Z6 M10×1
②:卡套式三通终端变径管接头 公称通径Ø6MM B=8MM C=4MM JT-3T-Z6-8-4 M10×1

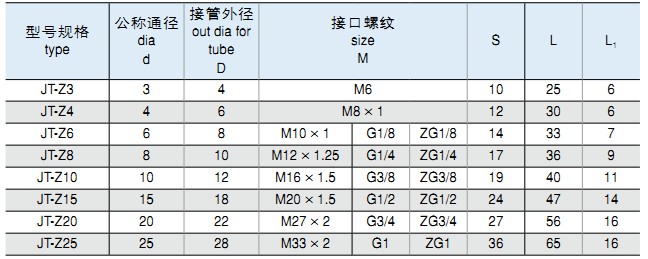

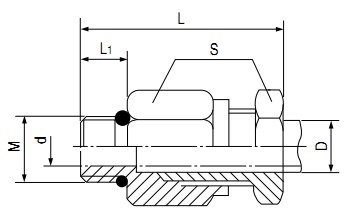

外形尺寸
