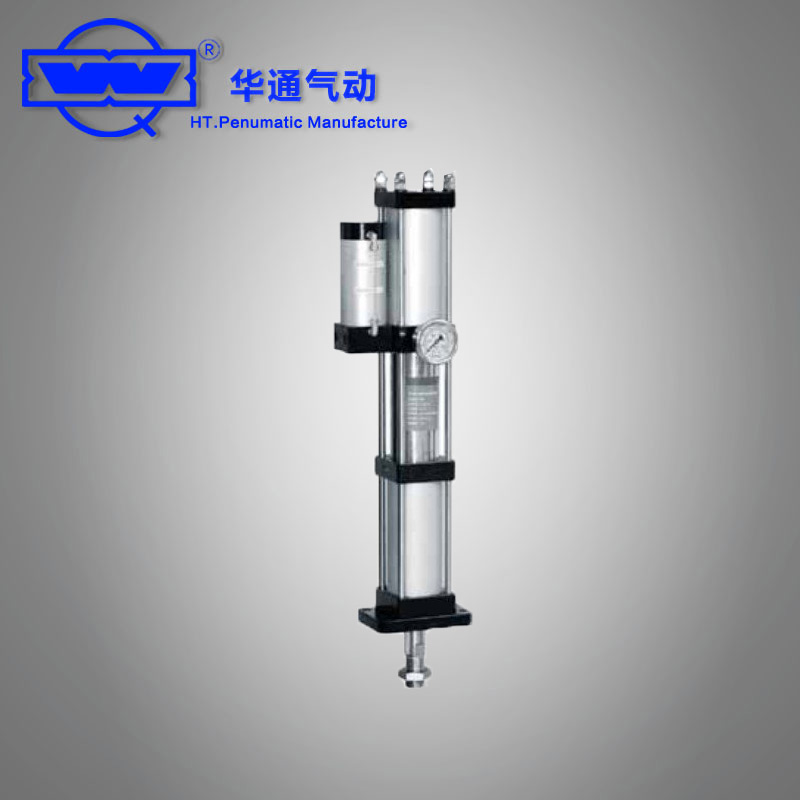

Huatong Pneumatic Rapid Booster Cylinder HTM series, non-standard custom cylinders can be customized according to drawings and samples

Technical parameterSpecification item/ Item parameter/ SpecificationProduct name/ TypeHTF 1~40T boosting cylinder HTF 1-40T boosting cylinder

Product Description

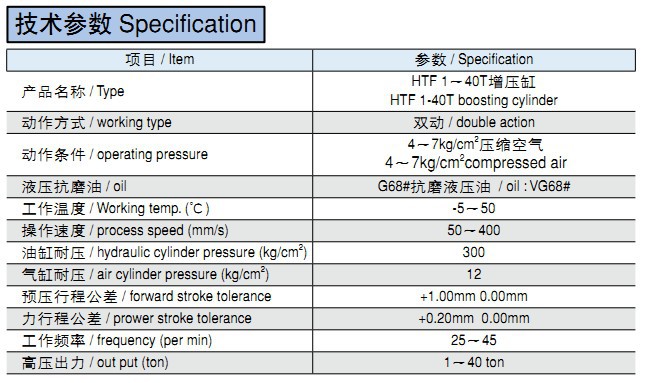

技术参数 Specification

项目 / Item 参数 / Specification
产品名称 / Type
HTF 1~40T增压缸
HTF 1-40T boosting cylinder
动作方式 / working type 双动 / double action
动作条件 / operating pressure
4~7kg/cm2
压缩空气
4~7kg/cm2
compressed air
液压抗磨油 / oil G68#抗磨液压油 / oil : VG68#
工作温度 / Working temp. (℃) -5~50
操作速度 / process speed (mm/s) 50~400
油缸耐压 / hydraulic cylinder pressure (kg/cm2
) 300
气缸耐压 / air cylinder pressure (kg/cm2
) 12
预压行程公差 / forward stroke tolerance +1.00mm 0.00mm
力行程公差 / prower stroke tolerance +0.20mm 0.00mm
工作频率 / frequency (per min) 25~45
高压出力 / out put (ton) 1~40 ton

详情可登陆公司网站http://www.wxpneum.com.cn

或拨打电话0510-83591123


Instudry Application

China Supplier Single Electric Control Valve K23jd-15bw G1/2" High Quality 3/2-Way Plate Fitting Shutoff Directional Valve Huatong Pneumatic Solenoid Valve

Company Profile

China Supplier Single Electric Control Valve K23jd-15bw G1/2" High Quality 3/2-Way Plate Fitting Shutoff Directional Valve Huatong Pneumatic Solenoid Valve

Established in 1956, Wuxi Huatong Pneumatic Manufacture Co., Ltd. is a strong and reliable partner for various industries. With our innovative R&D team, professional technical support team, and motivated sales team, we have been producing and delivering a large number of different valves, cylinders, air-filter components, and accessories to Germany, USA, Iran, Singapore, Russia Federation over 60 years. Huge investments in advanced technology of production and testing equipment, software and organization structure support us to offer top quality and good service. We are committed to be a leading provider and supporter to all our customers.

Huatong Pneumatic produces high-quality pneumatic and hydraulic cylinders as well as pneumatic valves, complete pneumatic systems, pneumatic / electrical stainless steel cabinets in all sizes and various custom-made accessories and spare parts according to our customer needs. We have satisfied customers for our custom-made pneumatics in China, USA, Germany, Italy, Holland, Australia and various other countries.


China Supplier Single Electric Control Valve K23jd-15bw G1/2" High Quality 3/2-Way Plate Fitting Shutoff Directional Valve Huatong Pneumatic Solenoid ValveChina Supplier Single Electric Control Valve K23jd-15bw G1/2" High Quality 3/2-Way Plate Fitting Shutoff Directional Valve Huatong Pneumatic Solenoid Valve

Certifications

China Supplier Single Electric Control Valve K23jd-15bw G1/2" High Quality 3/2-Way Plate Fitting Shutoff Directional Valve Huatong Pneumatic Solenoid Valve

FAQ

Q1: Are you a manufacturer or trading company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.

Q2: How do you ensure your product and service quality?
A: Our processes strictly adhere to ISO 9001 procedures. Every product will be strictly tested before packing and shipping.

Q3: How can you customize cylinders?
A: Our engineer will design with your drawing or requirements, and send our drawing for you to check. Then, we will arrange production.

Q4: How can I make payment?
A: We accept T/T, L/C, Western Union.

Q5: What's your minimum order quantity?
A: All MOQS vary, depending on the products. Please feel free to check with us for specific items.

Q6: What about your delivery time?
A: It depends, but usually takes about 1-6 weeks.

Q7. What about shipping?
A: We suggest small batch by air/express and bulk by sea.

Q8. Do you have OEM/ODM service?
A:Yes. We OEM and ODM for some famous brand.

Q9. What's your policy if we want to distribute your products in local market?
A: Thanks for your interest and support. We would like to offer some Preferential policies, like discount in price, prepare stock and so on. Welcome to our factory and have a face-to-face talk.

Q10: What about your after-sales service?
A: We have a professional after-sales service team. Your feedback will be quickly responded and solved.



China Supplier Single Electric Control Valve K23jd-15bw G1/2" High Quality 3/2-Way Plate Fitting Shutoff Directional Valve Huatong Pneumatic Solenoid Valve
