Wuxi Huatong Pneumatic Manufacture
Pneumatics/Solenoid Valve/Cylinder

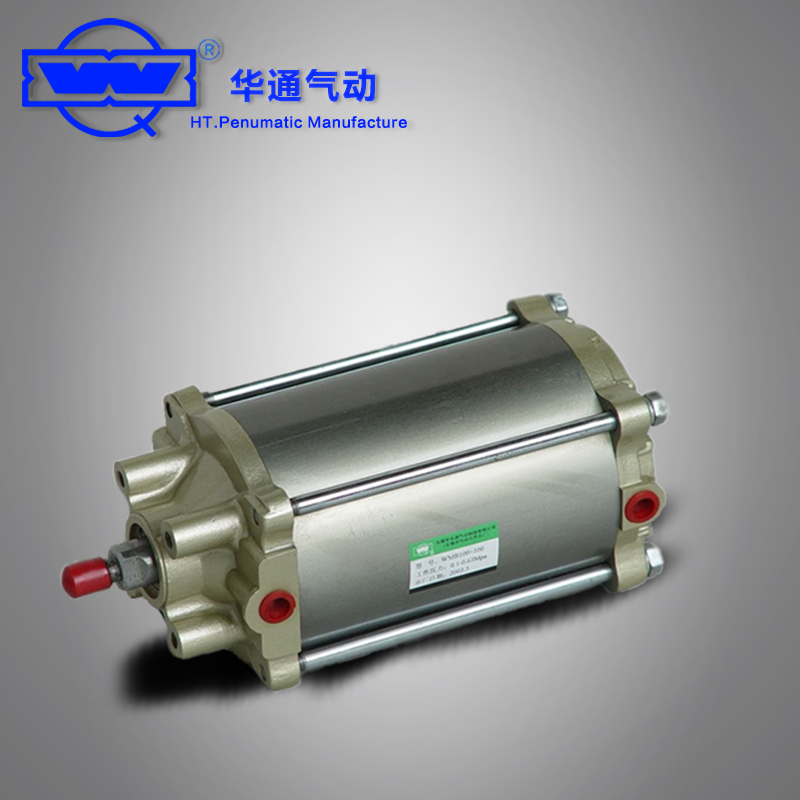

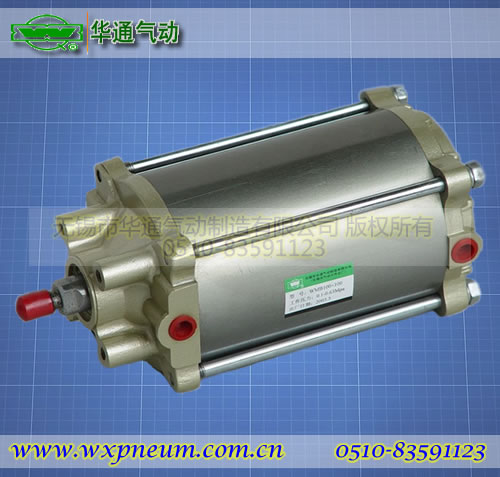

WMB-100×100 Outer swing door cylinder is a special cylinder for passenger cars to open and close the door. The door pump assembly can be divided into left-hand and right-hand according to customer needs. It has the characteristics of stability, flexibility, safety and reliability, and is an ideal pneumatic component in the passenger car manufacturing industry.
外摆门气缸总成 WMB系列

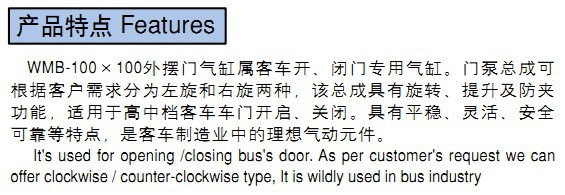

产品特点：
WMB-100×100外摆门气缸属客车开、闭门专用气缸。门泵总成可根据客户需求分为左旋和右旋两种，该总成具有旋转、提升及防夹功能，适用于高中档客车车门开启、关闭。具有平稳、灵活、安全可靠等特点，是客车制造业中的理想气动元件。
It's used for opening /closing bus's door.As per customer's request we can offer clockwise / counter-clockwise type, It is wildly used in bus industry
技术参数：
项目Item 参数 Specification
缸径 / Dia Ø100mm
工作介质 / Working medium: 干燥洁净含油雾的压缩空气Dry and clean compressed air containing oil mist
工作压力 / Working pressure range： 0.1~0.63MPa
耐压 Max pressure 1.5MPa
工作温度 / Working temp. (℃) -40 ~ +60℃
活塞运动速度 / Piston speed 50~500mm/s
理论出力(压力为0.63Mpa时)
Theoretical force out put (when pressure is 0.63Mpa)
推力Pushing force 4.71×103N
拉力Pulling force 4.29×103N
Instudry Application
Company Profile
Established in 1956, Wuxi Huatong Pneumatic Manufacture Co., Ltd. is a strong and reliable partner for various industries. With our innovative R&D team, professional technical support team, and motivated sales team, we have been producing and delivering a large number of different valves, cylinders, air-filter components, and accessories to Germany, USA, Iran, Singapore, Russia Federation over 60 years. Huge investments in advanced technology of production and testing equipment, software and organization structure support us to offer top quality and good service. We are committed to be a leading provider and supporter to all our customers.
Huatong Pneumatic produces high-quality pneumatic and hydraulic cylinders as well as pneumatic valves, complete pneumatic systems, pneumatic / electrical stainless steel cabinets in all sizes and various custom-made accessories and spare parts according to our customer needs. We have satisfied customers for our custom-made pneumatics in China, USA, Germany, Italy, Holland, Australia and various other countries.
Certifications
FAQ
Q1: Are you a manufacturer or trading company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q2: How do you ensure your product and service quality?
A: Our processes strictly adhere to ISO 9001 procedures. Every product will be strictly tested before packing and shipping.
Q3: How can you customize cylinders?
A: Our engineer will design with your drawing or requirements, and send our drawing for you to check. Then, we will arrange production.
Q4: How can I make payment?
A: We accept T/T, L/C, Western Union.
Q5: What's your minimum order quantity?
A: All MOQS vary, depending on the products. Please feel free to check with us for specific items.
Q6: What about your delivery time?
A: It depends, but usually takes about 1-6 weeks.
Q7. What about shipping?
A: We suggest small batch by air/express and bulk by sea.
Q8. Do you have OEM/ODM service?
A:Yes. We OEM and ODM for some famous brand.
Q9. What's your policy if we want to distribute your products in local market?
A: Thanks for your interest and support. We would like to offer some Preferential policies, like discount in price, prepare stock and so on. Welcome to our factory and have a face-to-face talk.
Q10: What about your after-sales service?
A: We have a professional after-sales service team. Your feedback will be quickly responded and solved.
