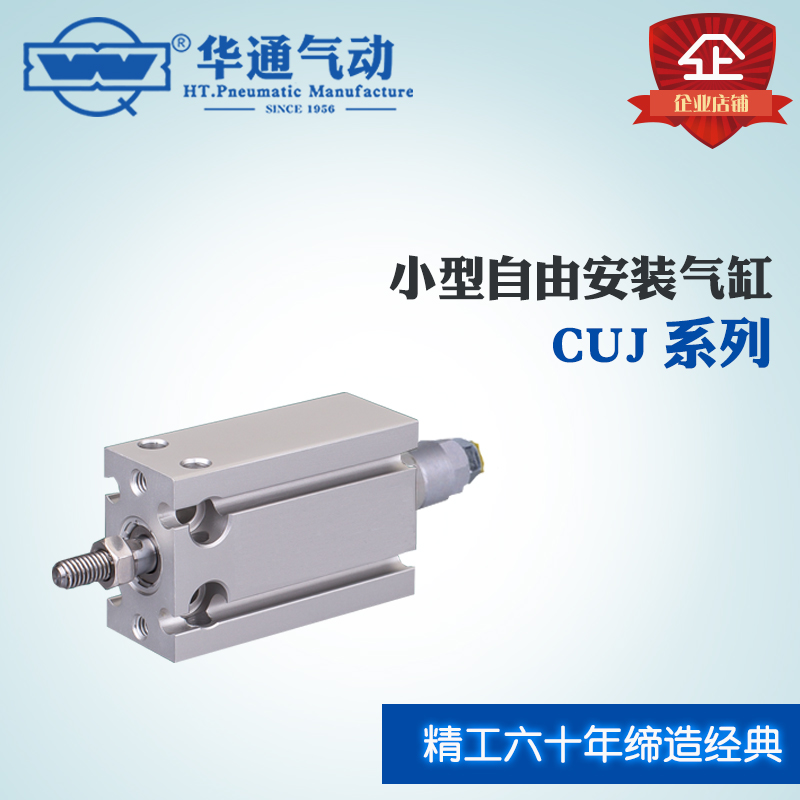

Huatong Pneumatic small free installation cylinder CUJ series, non-standard custom cylinders can be customized according to drawings and samples
Technical parameters Specification Inner diameter / Bore (mm) 4 6 8 10 Fluid / Fluid Air / Air Action Form / Moti
| Product Specifications | |
|---|---|
| Product Name | Huatong Pneumatic small free installation cylinder CUJ series, non-standard custom cylinders can be customized according to drawings and samples |
| Product Category | Pneumatic Cylinder |
| Manufacturer | Wuxi Huatong Pneumatic Manufacturing Co., Ltd. - China High-Tech Enterprise (Established 1956) |
| Product Catalog | Download PDF |

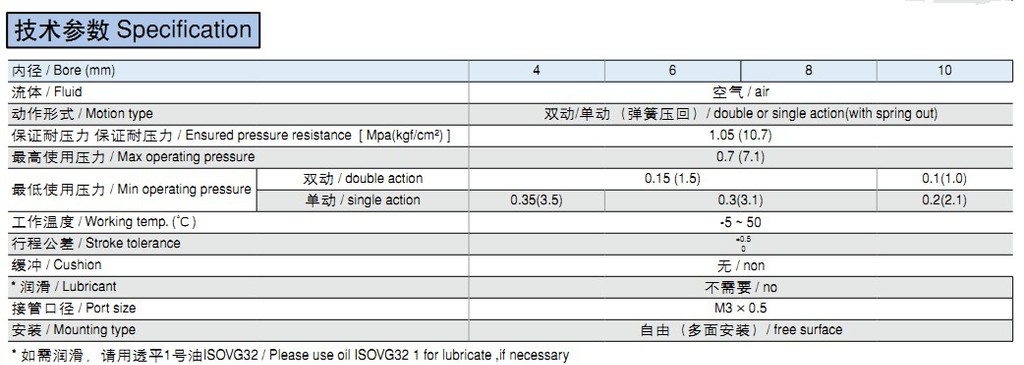

技术参数 Specification
内径 / Bore (mm) 4 6 8 10
流体 / Fluid 空气 / air

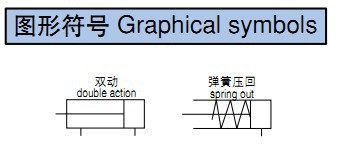

动作形式 / Motion type 双动/单动(弹簧压回)/ double or single action(with spring out)
保证耐压力 保证耐压力 / Ensured pressure resistance [ Mpa(kgf/cm2) ] 1.05 (10.7)
*高使用压力 / Max operating pressure 0.7 (7.1)
*低使用压力 / Min operating pressure
双动 / double action 0.15 (1.5) 0.1(1.0)
单动 / single action 0.35(3.5) 0.3(3.1) 0.2(2.1)
工作温度 / Working temp. (℃) -5 ~ 50
行程公差 / Stroke tolerance
+0.5
0
缓冲 / Cushion 无 / non
* 润滑 / Lubricant 不需要 / no
接管口径 / Port size M3×0.5
安装 / Mounting type 自由(多面安装)/ free surface
* 如需润滑,请用透平1号油ISOVG32 / Please use oil ISOVG32 1 for lubricate ,if necessary
详情可登陆公司网站http://www.wxpneum.com.cn
