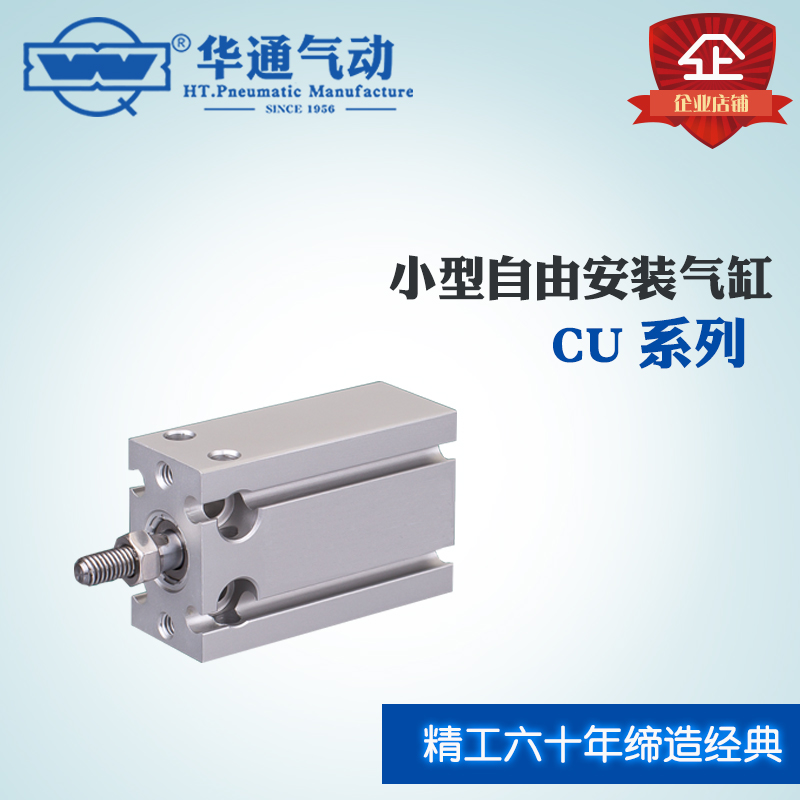

Huatong Pneumatic free installation cylinder CU series, non-standard custom cylinders can be customized according to drawings and samples
内径 / Bore(mm) 6 10 16 20 25 32
流体 / Fluid 空气 / air

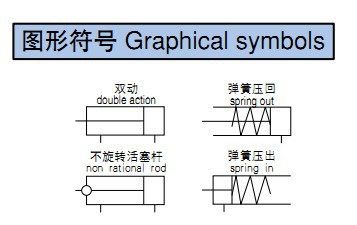

动作形式 / Motion type
双动 / double action
单动: 弹簧压回/弹簧压出 / single action with spring out or in
保证耐压力 / Ensured pressure resistance [ Mpa(kgf/cm2) ] 1.0(10.5)
*高使用压力 / Max. operating pressure [Mpa(kgf/cm2)] 0.7(7.1)
工作温度 / Working temp. (℃) -5~ 50
缓冲 / Cushion 两端橡胶缓冲 / damper (both side)
行程公差 / Stroke tolorance
+1.0
0
* 润滑 / Lubricant 不需要 / no need
安装 / Install 自由(多面安装)/ free mount
活塞杆不转动精度 / No rational
(只限CUK/CDUK)
±0.8° ±0.5°
接管口径 / Port size M5×0.8 1/8
* 如需润滑,请用透平1号油ISOVG32 / Please use oil ISOVG32 1 for lubricate ,if necessary

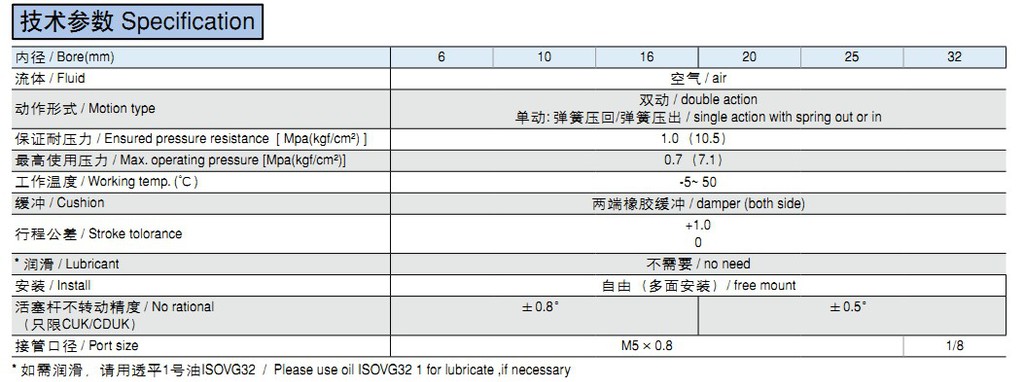

技术参数 Specification
详情可登陆公司网站ht
Instudry Application
Company Profile
Established in 1956, Wuxi Huatong Pneumatic Manufacture Co., Ltd. is a strong and reliable partner for various industries. With our innovative R&D team, professional technical support team, and motivated sales team, we have been producing and delivering a large number of different valves, cylinders, air-filter components, and accessories to Germany, USA, Iran, Singapore, Russia Federation over 60 years. Huge investments in advanced technology of production and testing equipment, software and organization structure support us to offer top quality and good service. We are committed to be a leading provider and supporter to all our customers.
Huatong Pneumatic produces high-quality pneumatic and hydraulic cylinders as well as pneumatic valves, complete pneumatic systems, pneumatic / electrical stainless steel cabinets in all sizes and various custom-made accessories and spare parts according to our customer needs. We have satisfied customers for our custom-made pneumatics in China, USA, Germany, Italy, Holland, Australia and various other countries.
Certifications
FAQ
Q1: Are you a manufacturer or trading company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q2: How do you ensure your product and service quality?
A: Our processes strictly adhere to ISO 9001 procedures. Every product will be strictly tested before packing and shipping.
Q3: How can you customize cylinders?
A: Our engineer will design with your drawing or requirements, and send our drawing for you to check. Then, we will arrange production.
Q4: How can I make payment?
A: We accept T/T, L/C, Western Union.
Q5: What's your minimum order quantity?
A: All MOQS vary, depending on the products. Please feel free to check with us for specific items.
Q6: What about your delivery time?
A: It depends, but usually takes about 1-6 weeks.
Q7. What about shipping?
A: We suggest small batch by air/express and bulk by sea.
Q8. Do you have OEM/ODM service?
A:Yes. We OEM and ODM for some famous brand.
Q9. What's your policy if we want to distribute your products in local market?
A: Thanks for your interest and support. We would like to offer some Preferential policies, like discount in price, prepare stock and so on. Welcome to our factory and have a face-to-face talk.
Q10: What about your after-sales service?
A: We have a professional after-sales service team. Your feedback will be quickly responded and solved.
