Single-acting cylinder speed control loop

Published: 2013-11-30 13:57:25 Views: 594 Source: Wuxi Huatong Pneumatic

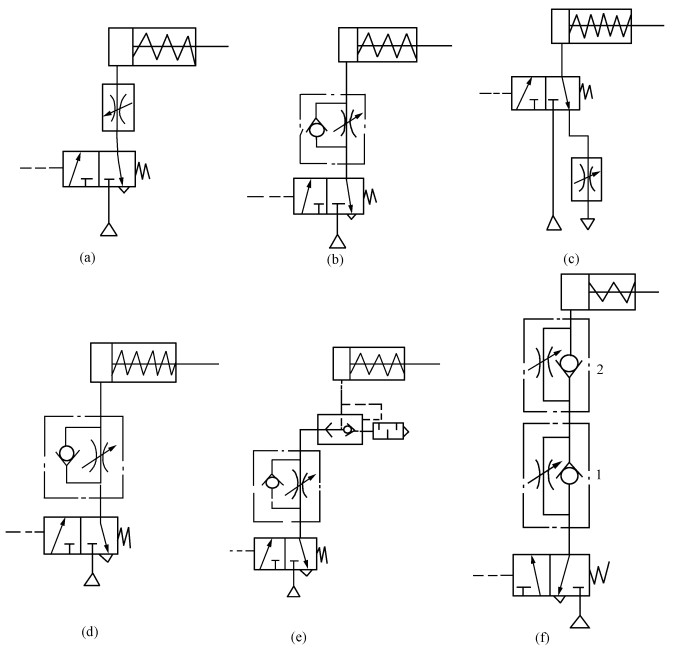

Article Summary 单作用气缸速度控制回路下图1所示为单作用气缸速度控制回路。图a可以进行双向速度调节，图b采用快速排气阀可实现快速返回，但是返回速度不能调节。图1 单作用气缸的其它速度控制回路下图2所示为单作用气缸的其它速度控制回路，图a、b所示为对活塞杆的伸出进行速度控制，图 c、d所示为对活塞杆的退回进行速度控制，图f所示利用两个单向节流阀控制气缸伸出和退回的速度。图e所示为用单向节流阀和快排阀实现气缸慢进快退速度控制。图2 单作用气缸的其它速度控制回路

✓Wuxi Huatong Pneumatic Manufacturing Co., Ltd. - China High-Tech Enterprise

✓Established 1956

Source: Wuxi Huatong Pneumatic Manufacturing Co., Ltd. Published 2013-11-30

单作用气缸速度控制回路

下图1所示为单作用气缸速度控制回路。图a可以进行双向速度调节，图b采用快速排气阀可实现快速返回，但是返回速度不能调节。

单作用气缸的速度控制回路
